- 抗原
- Lentivirus
- 适用
- Lentivirus
- 检测范围
- 10^5-10^7 TU/mL
- 最低检测浓度
- 10^5 TU/mL
- 应用范围
- Lateral Flow Chromatographic Immunoassay (LFCIA), Rapid Test (rapid)
- 原理
- A rapid lateral flow immunoassay that allows quick confirmation of useful lentivirus titers in the packaging supernatants.
- 产品特性
-
Lentivirus Titration XpressCard is a rapid lateral flow immunoassay that allows quick confirmation of useful lentivirus titers* in the packaging supernatants.
The test detects lentiviral capsule proteins released into the packaging supernatant as a surrogate marker to determine whether virus production yields a usable titer for subsequent infection.
This assay takes only 10-15 minutes, compared to the conventional re-infection based assay that takes 2-3 Days.

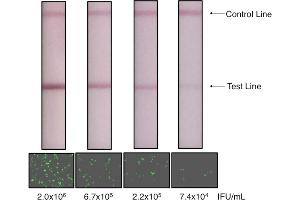

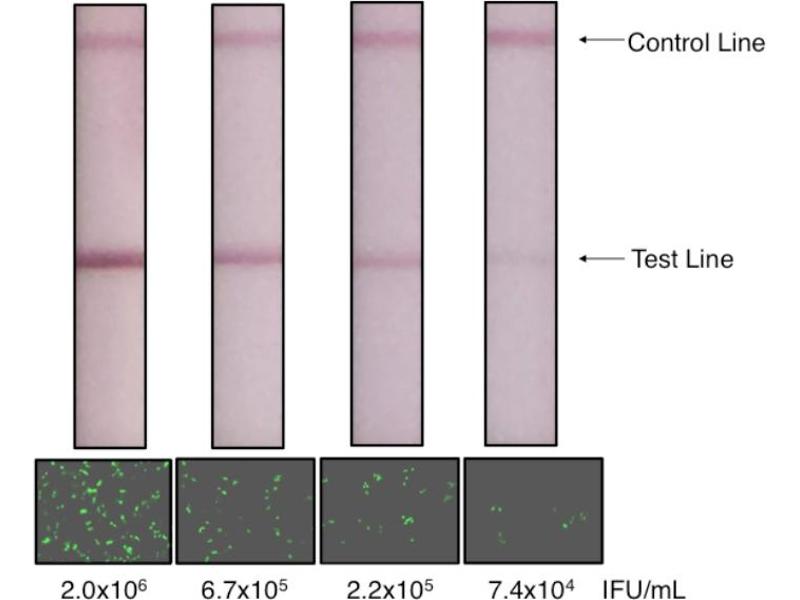

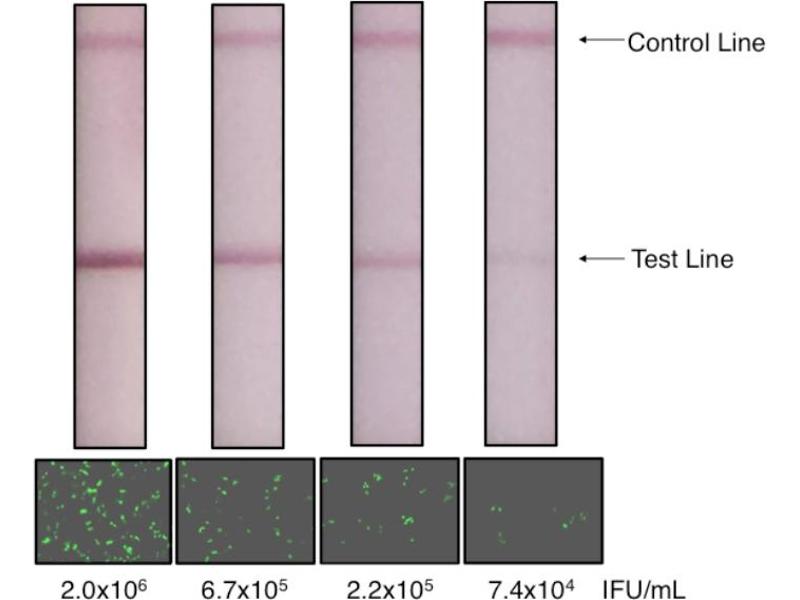

*Users are encouraged to correlate T line intensity with functional titers in their own infection system, as different cell types have different susceptibility to lentivirus. In the above example, HEK293 cells were infected with serially diluted lentivirus packaging supernatants. After 72 hrs, ZsGreen1-expressing cells were observed under fluorescence microscope. A dark red test line was generated by a dilution containing ~2 x 10^6 IFU/ml (as measured by flow cytometry of transduced HEK293 cells). - 组件
- 2 cassetts per pouch
-
- 应用备注
-
Can purified lentivirus particles be used in this assay? As shown in the above case, both packaging supernatant and purified lentivirus particles can be used, as the sample pad contains detergent to efficiently lyse viral particles and release p24 protein during flow migration.

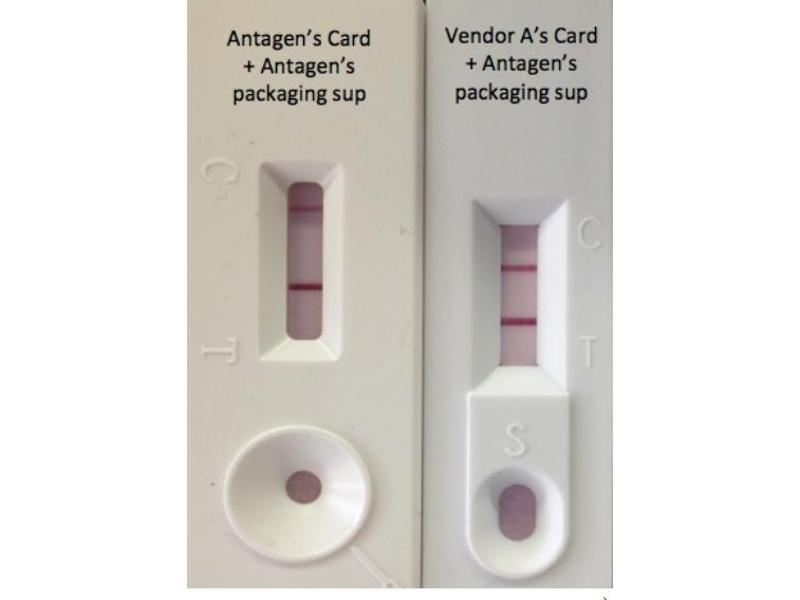

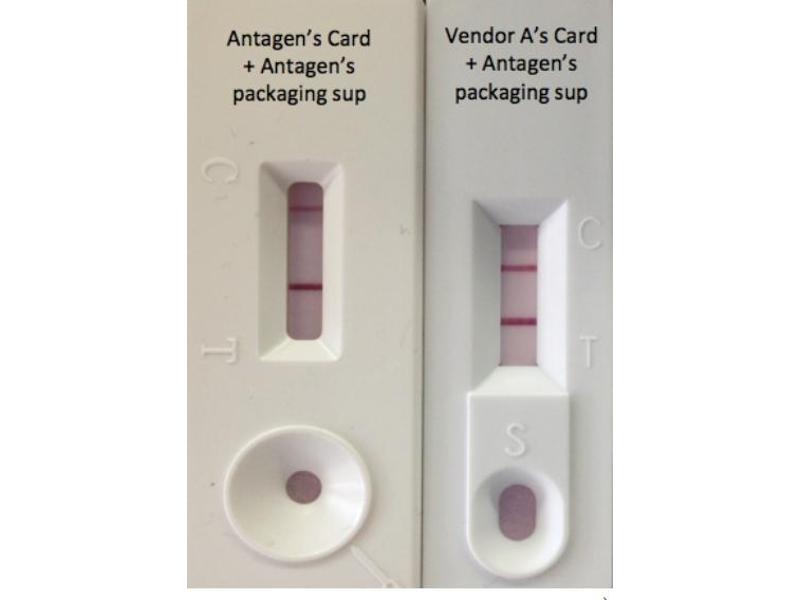

How is XpressCard compared with similar product on the market? When loaded with the same packaging supernatant, XpressCard showed the T line quickly in about 30 sec, much faster than Vendor A’s, which showed the T line around 2 min. When observed at 10 min, XpressCard showed the T line at somewhat stronger or at least equivalent intensity as Vendor A’s. Therefore, XpressCard is more sensitive than similar product on the market. - 说明
-
We tested XpressCards using serial dilution of purified concentrated lentivirus stock with known titres (Cellomics Technology, MD USA).
The results showed that the detection limit is at 1 x 10^5 TU/ml or 1 x 10^4 TU (in 100 μL).
According to the literature, one lentivirus particle carries about 2,000 p24 molecules, which is the analyte of the XpressCard :
1 x 10^5/ml × 2000 ÷ (6.23 × 10^23) × 24 × 10^3 g
＝ 2 × 10^8 ÷ (6.23 × 10^23) × 24 × 10^3 × 10^12 pg/ml
＝ 7.7 pg/ml
As a comparison, Vendor A's “Lenti-X™ p24 Rapid Titer Kit” ELISA kit has a sensitivity of 12.5 pg/ml, whereas Vendor B’s “QuickTiter Lentivirus Titer Kit” has a sensitivity of 1 ng/ml. These assays are all ELISA based, which need 3-4 hours. Therefore, XpressCard can reach ELISA sensitivity but with only 10-15 min on hand time. - 样本量
- 100 µL
- 实验时间
- 15 min
- 实验流程
-
1) Place the card horizontally
2) Add 100 μL of packaging supernatant directly to the Sample Well
3) Wait for 10-15 Minutes. - 结果分析
-
Results:
A red control line will always appear in 5 minutes.
Depending on the titers
(a usable titer should be at least 1x10^6 IFU/mL), a dark red test line will appear within 10-15 Minutes. - 限制
- 仅限研究用
-
- 储存条件
- RT
- 储存方法
-
Store the cards in their original packaging at room temperature.
This product is stable for up to 18 months from the certified date.
Freezing the strips is not Recommended. - 有效期
- 18 months
-
- 抗原
- Lentivirus
- 物质类
- Virus
-
